2.paper separator or aluminum foil for HVAC filter

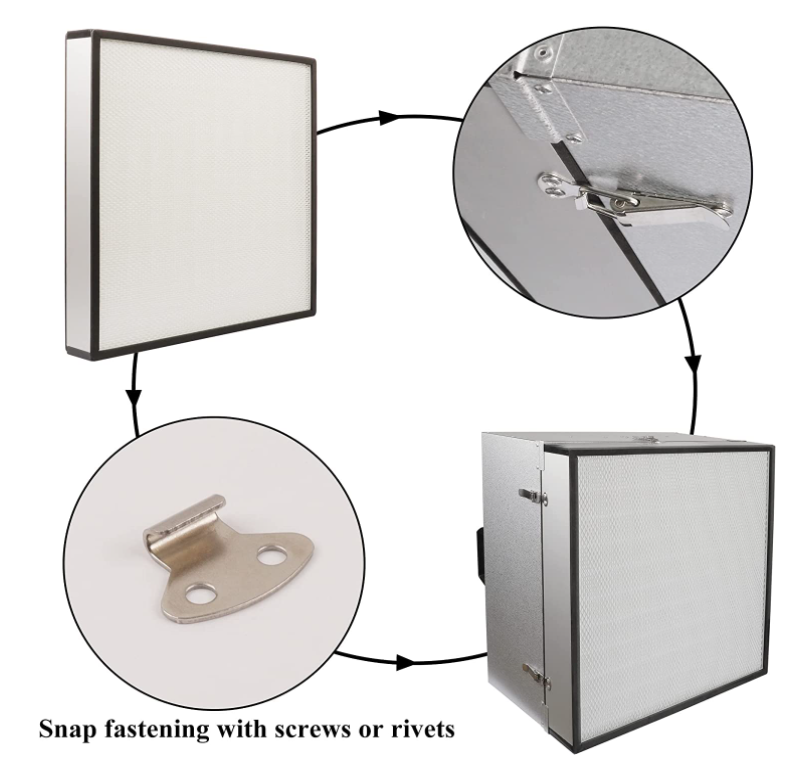

3. Gasket or protective net available
4. Any size or shape can be customized
5.Application : clean room equipment, electronics plants,pharmacy ,hospitals, food processing, semiconductor etc.
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beve
类型 Type | 规格 Size(mm) (宽x高x深) | 额定风量 Rated Airflow (m3/h) | 过滤面积 Filter Class(m2) | 初阻力 Initial Pressure Drop(Pa) | 终阻力 Final Pressure Drop(Pa) | 效率 Average arrestance |
HF-YGB | 484x484x150 | 530 | 6.0 | <220 | 400 | >99.97% |
610x610x150 | 1000 | 9.7 | <220 | 400 | >99.97% | |
1220x610x150 | 2000 | 19.3 | <220 | 400 | >99.97% | |
484x484x220 | 1000 | 9.8 | <220 | 400 | > 99.97% | |
610x610x220 | 1600 | 15.8 | <220 | 400 | >99.97% | |
1220x610x220 | 3000 | 31.6 | <220 | 400 | >99.97% | |
610*610*292 | 1700 | 17.6 | <220 | 400 | >99.97% | |
1220*610*292 | 3400 | 33.6 | <220 | 400 | >99.97% |
