Favarable Price Ceiling Filter Paint Stop Fiberglass Filter Media

Favarable Price Ceiling Filter Paint Stop Fiberglass Filter Media

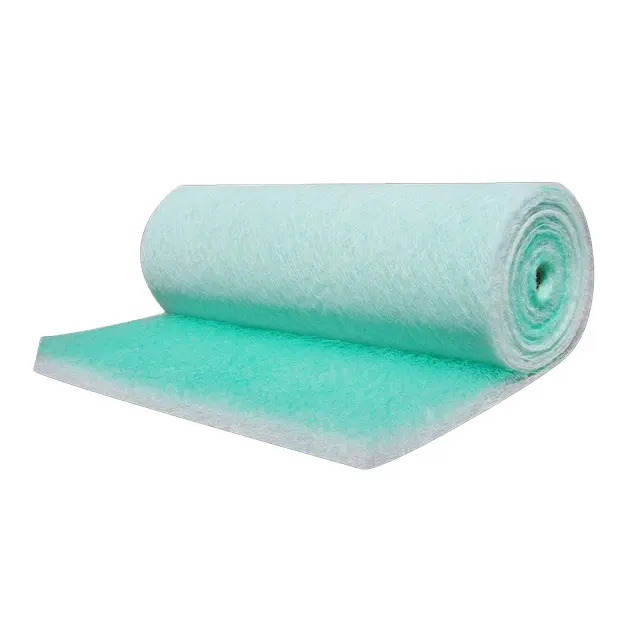

Used in heat recovery systems and high quality paint filtration. High strength fiberglass composition. The Inlet side is green,Outlet side is white.

Ask A Qusetion

Features

Product name : Fiberglass Filter

Application :Spray painting room,air-condition system.
Roll sizes standard :
0.8x20m, 1.0x20m ,2.0x20m
Normal thickness  : 50/60mm/100mm
Weight :160 KG
Temperature resistance:
170°C


Technical Parameters


型号

Type

厚度

Thickness

(mm)

测试风速

Test Air

Velocity (m/s)

平均计重效 Average arrestance (EN779)

初阻力

Initial

Resistance (pa )

容尘量

Dust Holding Capacity (g/m2)

过滤级别

Filtration

Grade

标准尺寸 Size (m)

耐温度

Temperature

Resistance

°C

PS-60

60

1.5

85

20

3200

G3

lm*20m

2m*20m

170

PS-100

100

1.5

90

25

4500

G4

170

其他厚度:50mm, 75mm ,80mm  Available thickness: 50mm, 75mm ,80mm
